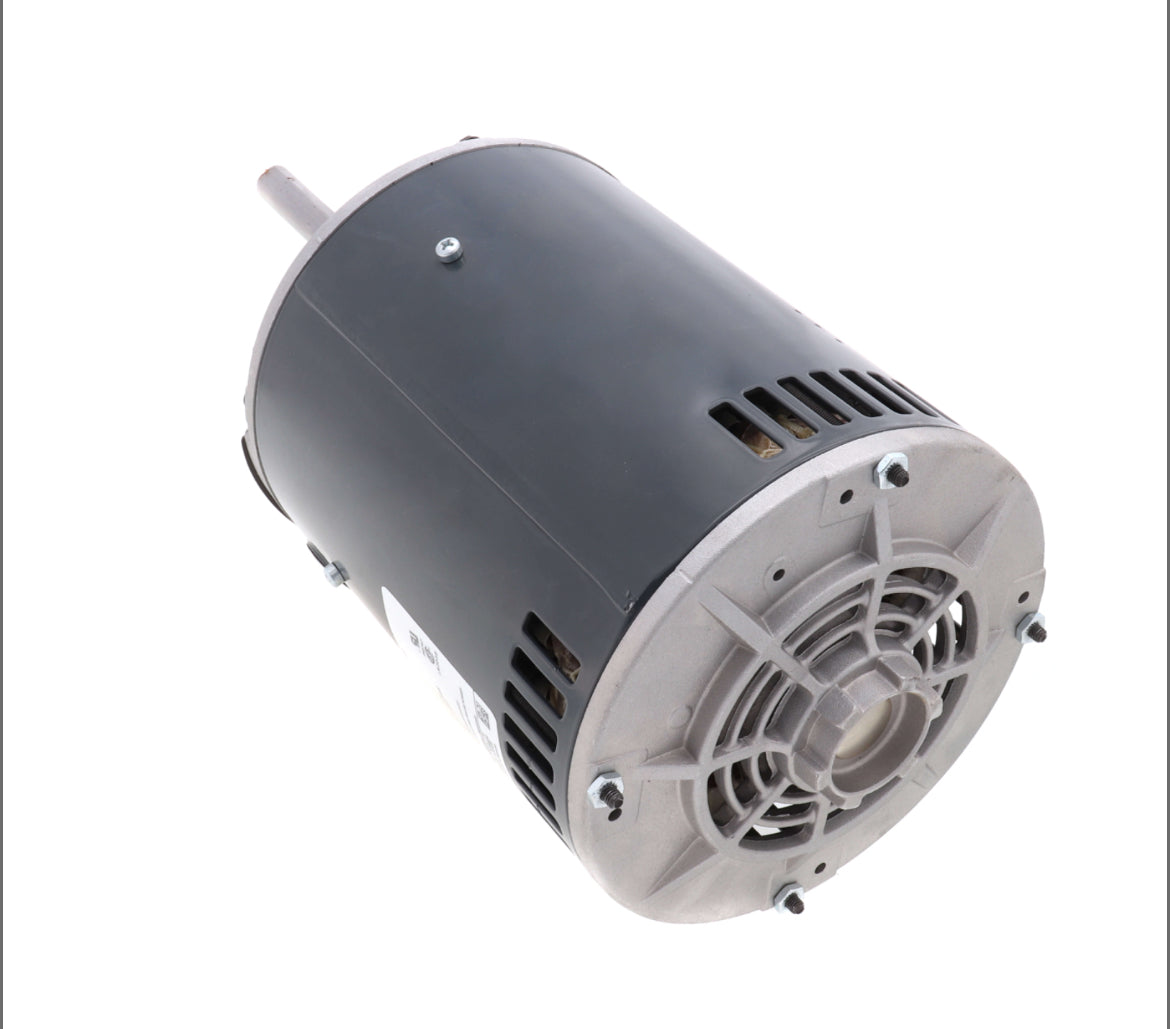

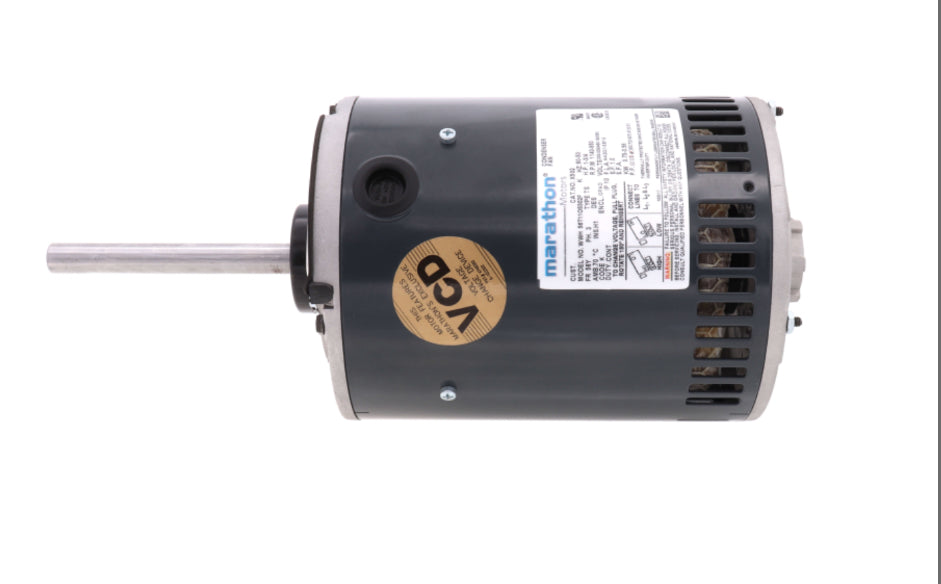

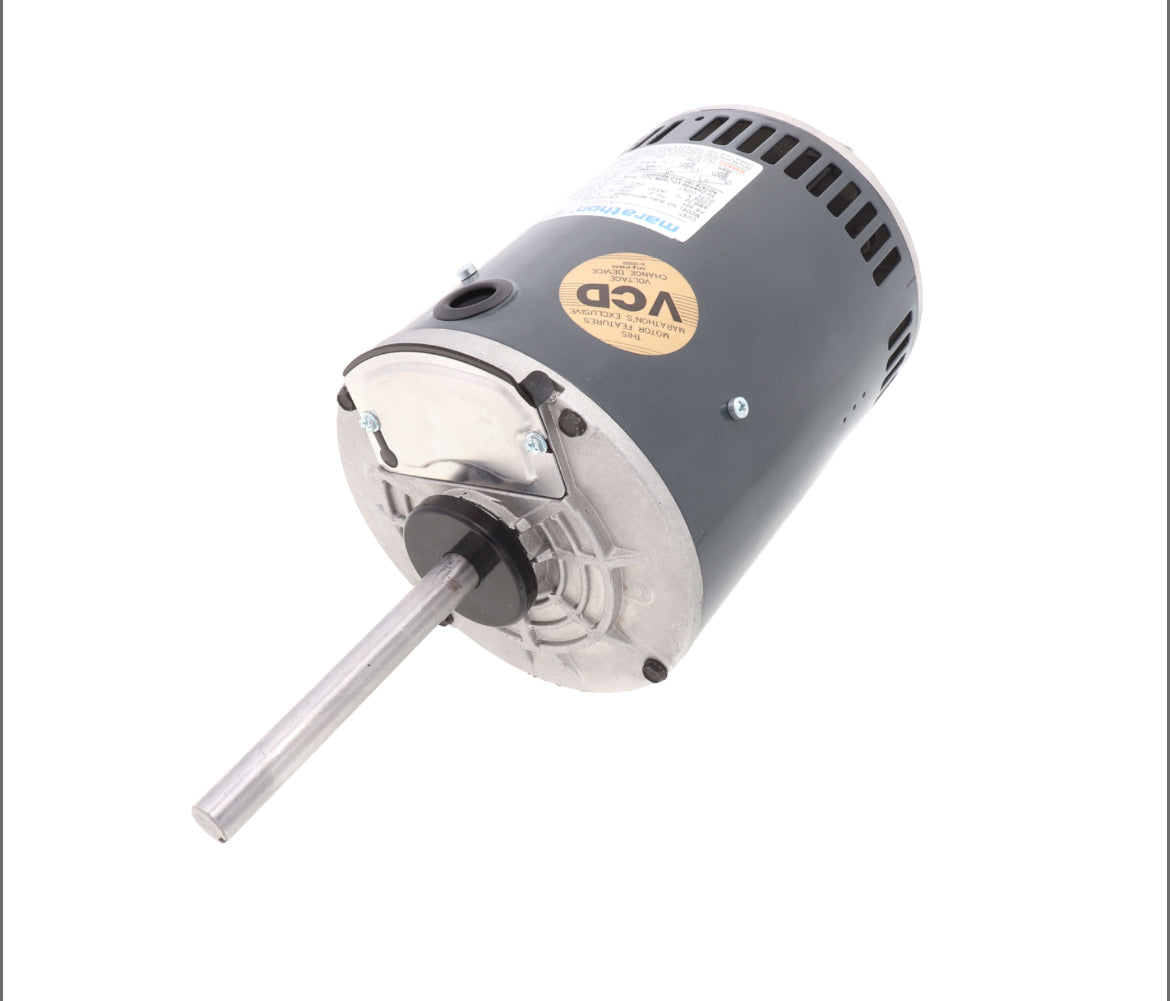

Condenser Fan & Heat Pump - 1 HP, 1140 RPM, 3 PH, Reversible (200-230/460V)  Commercial condenser fans may be installed outdoors. These motors need to be mounted within the airflow of the fan for proper cooling. Used on Trane, Carrier, Climatrol and York units, 5 tons and larger.

Features:

• 70°C ambient (except as noted)
• Enclosed shaft end bracket, vented frame
• Automatic reset thermal protector
• Nameplate 60/50 hertz 190/380 volts, at next lower HP (except as noted)
• Double sealed ball bearings
• 5/8" Dia. x 5" long shaft with flat and keyway
• Ball bearings
• Threaded lead exit
• Patented VCD - Voltage Change Device
• 4 Locating screws 90 degrees apart, 3.33" from outer edge of shaft slinger
• Hubs on both ends will accept resilient base kits, see Accessories section (except X524 and X526 - horizontal only)
• UL Recognized and CSA Certified
• External shaft slinger on all, internal slinger on 5K models
